COMMERCIAL PRODUCT

Project Applications: Government

C700 Project Out Window

Rating: AW-PG70

U-Factor: —

Water PSF: 12.11

C700 Fixed Window

Rating: AW-PG70

U-Factor: —

Water PSF: 12.11

C600/605 Project Out Window

Rating: AW-PG100

U-Factor: 0.20-0.32

Water PSF: 15.04

C600/605 Casement Window

Rating: AW-PG100

U-Factor: 0.20-0.30

Water PSF: 15.04

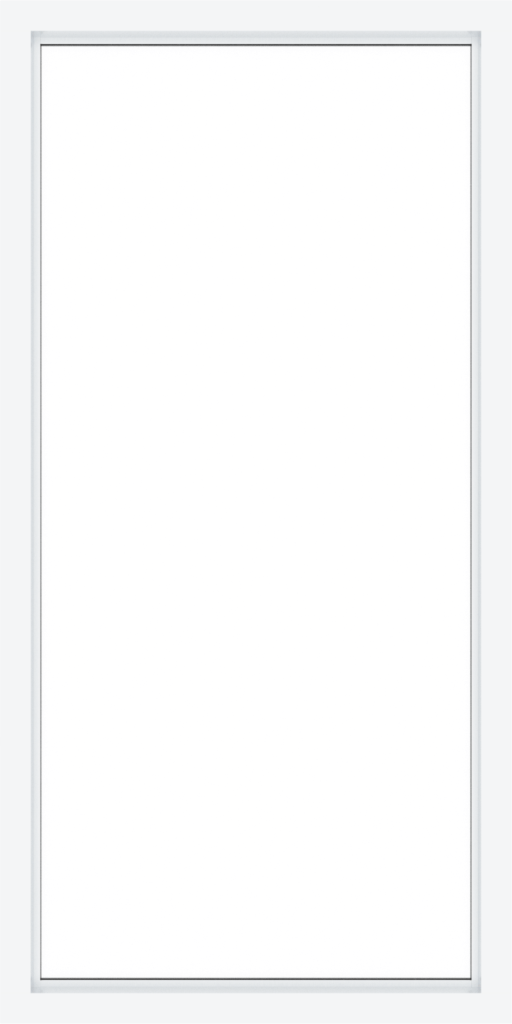

H650/655 Fixed Window

Rating: AW-PG90

U-Factor: —

Water PSF: 12

H650/655 Single Hung Window

Rating: AW-PG60-H

U-Factor: as low as 0.30

Water PSF: 12

H450 Fixed Window

Rating: AW-PG100-F

U-Factor: As low as 0.23

Water PSF: Up to 15

H450 Project Out Window

Rating: CW-PG90-AP

U-Factor: As low as 0.30

Water PSF: 12

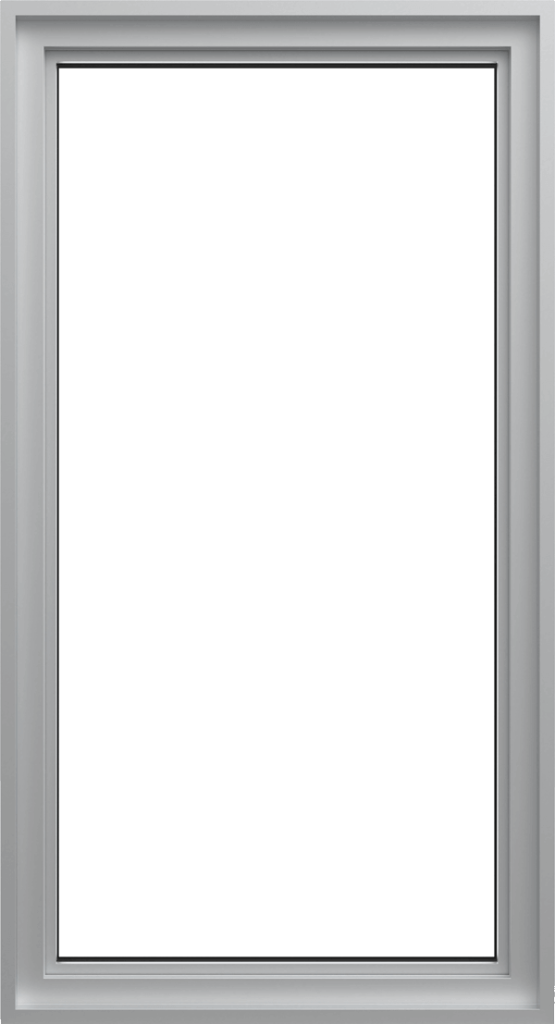

H450 Casement Window

Rating: CW-PG90-C

U-Factor: as low as 0.30

Water PSF: Up to 15

T600 Project Out Window

Rating: AW-PG70

U-Factor: 0.41-0.46

Water PSF: 12.11

T600 Casement Window

Rating: AW-PG70

U-Factor: 0.41 – 0.46

Water PSF: 12.11

T600 Fixed Window

Rating: AW-PG70

U-Factor: 0.27-0.34

Water PSF: 12.11

T600 Project In Window

Rating: AW-PG70

U-Factor: 0.43-0.47

Water PSF: 12.11

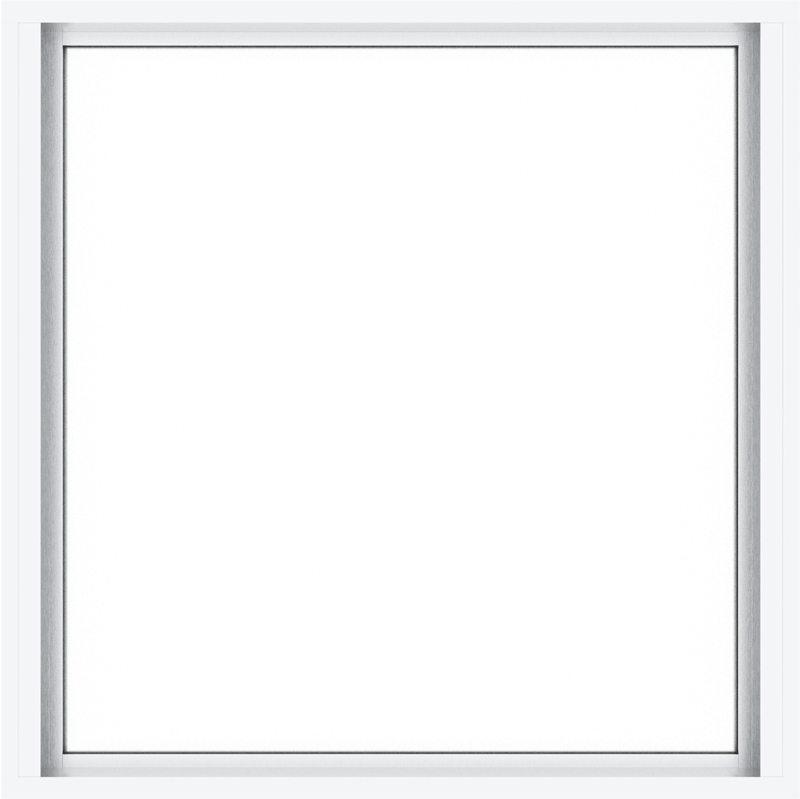

T500 Fixed Window

Rating: HC-50

U-Factor: 0.27 – 0.34

Water PSF: 12

T500 Single Hung Window

Rating: AW-PG50

U-Factor: 0.37 – 0.43

Water PSF: 10

M700 Project Out Window

Rating: AW-PG70-AP

U-Factor: —

Water PSF: 15

M700 Casement Window

Rating: AW-PG70

U-Factor: —

Water PSF: 15

M700 Fixed Window

Rating: AW-PG70-F

U-Factor: —

Water PSF: 12.11

M600 Project Out Window

Rating: AW-PG70-AP

U-Factor: 0.32-0.43

Water PSF: 15

B600 Casement Window

Rating: AW-PG70-C

U-Factor: 0.32-0.44

Water PSF: 12.11

M600 Casement Window

Rating: AW-PG70-C

U-Factor: 0.32-0.44

Water PSF: 15

B600 Fixed Window

Rating: AW-PG70-FW

U-Factor: 0.18-0.31

Water PSF: 12.11

M600 Fixed Window

Rating: AW-PG70-FW

U-Factor: 0.18-0.32

Water PSF: 12.11

M700 Sliding Door

Rating: AW-PG70-SD

U-Factor: —

Water PSF: —

M600 Sliding Door

Rating: AW-40

U-Factor: 0.36-0.41

Water PSF: 12

M700 Terrace Door

Rating: AW-PG70-TD

U-Factor: —

Water PSF: —

M600/M605 Terrace Door (Outswing)

Rating: AW-70

U-Factor: 0.39-0.45

Water PSF: 12.11

M600/M605 Terrace Door (Inswing)

Rating: AW-50

U-Factor: 0.37-0.43

Water PSF: 10.03

M600/M605 Terrace Door
(Outswing w/Low-profile sill)

Rating: AW-50

U-Factor: 0.39-0.45

Water PSF: 12.11

M300 Sliding Door

Rating: CW-PG50-SD

U-Factor: 0.35-0.40

Water PSF: 7.52

W700 Project Out Window

Rating: AW-PG70-AP

U-Factor: —

Water PSF: 12.11

W600/605 Project Out Window

Rating: Up to AW-PG100

U-Factor: 0.17-0.29

Water PSF: Up to 15

W700 Casement Window

Rating: AW-PG70-C

U-Factor: —

Water PSF: 12.11

W600/605 Casement Window

Rating: Up to AW-PG100

U-Factor: 0.17-0.29

Water PSF: Up to 15

W700 Fixed Window

Rating: AW-PG80-F

U-Factor: —

Water PSF: 12.11

W600/605 Fixed Window

Rating: Up to AW-PG100

U-Factor: 0.14-0.29

Water PSF: Up to 15

V700 Project Out Window

Rating: CW-50

U-Factor: —

Water PSF: 7.5

V700 Casement Window

Rating: CW-50

U-Factor: —

Water PSF: 7.5

V700 Fixed Window

Rating: CW-50

U-Factor: —

Water PSF: 7.5

V300 Project Out Window

Rating: CW-50

U-Factor: 0.18-0.28

Water PSF: 7.5

V300 Casement Window

Rating: CW-50

U-Factor: 0.23-0.28

Water PSF: 7.5

V300 Slider Window

Rating: CW-50

U-Factor: As low as 0.25

Water PSF: Up to 7.52

V300 Single Hung Window

Rating: CW-50

U-Factor: As low as 0.25

Water PSF: Up to 7.52

V300 Fixed Window (for V300 Casement & Project-Out)

Rating: CW-50

U-Factor: 0.11-0.54

Water PSF: 7.5

V300 Fixed Window (for V300 Single Hung & Slider)

Rating: CW-50

U-Factor: As low as 0.23

Water PSF: Up to 7.52

V300 Swing Door

Rating: CW-50

U-Factor: As low as 0.24

Water PSF: 7.50

V200 Sliding Door

Rating: R-50

U-Factor: 0.17-0.30

Water PSF: 7.52

B500 Fixed Window

Rating: HC-50

U-Factor: —

Water PSF: 12

B500 Single Hung Window

Rating: AW-PG50

U-Factor: —

Water PSF: 10.03

E700 Fixed Window

Rating: CW-70

U-Factor: —

Water PSF: —

E700 Slider Window

Rating: AW-50

U-Factor: —

Water PSF: —

E600 Project Out Window

Rating: AW-PG100

U-Factor: 0.26-0.37

Water PSF: 15

E600 Casement Window

Rating: AW-PG70

U-Factor: 0.26-0.39

Water PSF: 12.11

E600 Fixed Window

Rating: AW-PG100

U-Factor: 0.17-0.31

Water PSF: 15.04

E600 Project In Window

Rating: AW-PG100

U-Factor: 0.26-0.37

Water PSF: 15.04

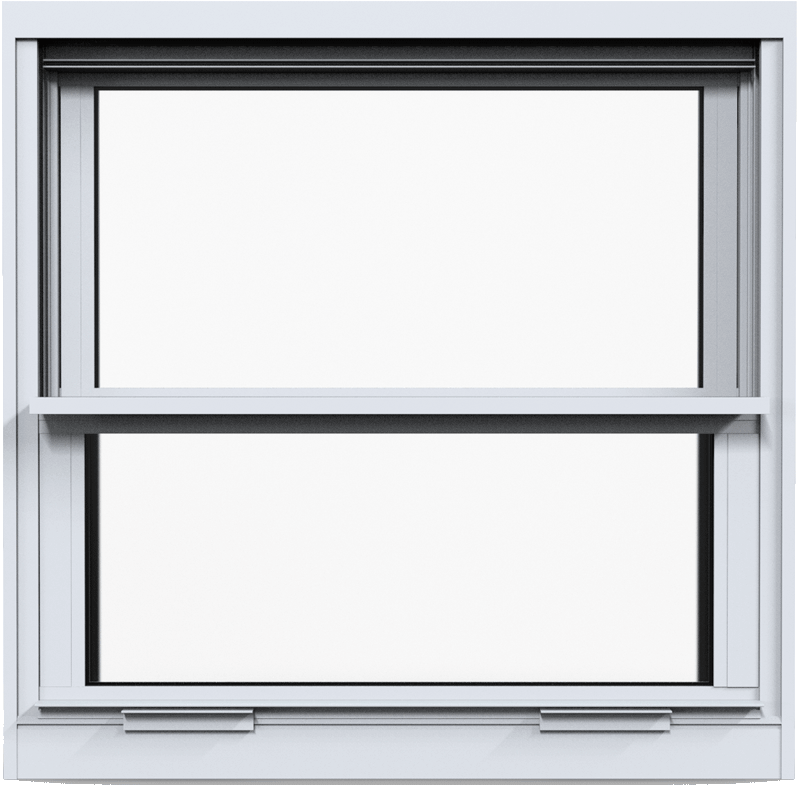

E500 Double Hung Window

Rating: AW-PG40

U-Factor: 0.36 – 0.42

Water PSF: —

E500 Fixed Window

Rating: AW-PG50

U-Factor: 0.25-0.32

Water PSF: 10

E500 Single Hung Window

Rating: AW-PG40

U-Factor: 0.36 – 0.42

Water PSF: —
