COMMERCIAL PRODUCT

E500 Slider Window

Product Material

aluminum

window type

Slider

Rating

AW-PG50

Structural
Overload (psf)

75.19

Condensation
Resistance (CR)

Air Infiltration
(cfm/ft2)

<0.30

Design Pressure
(psf)

75.19

Water Resistance
(psf)

10.03

STC

OITC

SHGC

0.13-48

U-Factor

0.36-0.41
Test Size (inches): 99 x 79

Product File Downloads

File Size Type Published Download
Aluminum Pannings E300 & E500 Slider Booklet 410.82 KB PDF 02/05/24 Download
Aluminum Pannings E300 & E500 End Vent Slider - Booklet 471.55 KB PDF 02/05/24 Download
Aluminum Muntins E300 & E500 Slider, End Vent Slider, Center Vent Slider booklet 177.37 KB PDF 02/05/24 Download
Aluminum Flashings 250.14 KB PDF 02/05/24 Download
Aluminum Trim Booklet 242.06 KB PDF 02/05/24 Download
Aluminum Pannings E300 & E500 Center Vent Slider - Booklet 409.73 KB PDF 02/05/24 Download
E500 Horizontal Slider Product Data Sheet 1.90 MB PDF 09/22/23 Download
E500 Horizontal Slider CSI Specs 08 51 13 149.50 KB DOC 01/27/23 Download
Subsill Accessories 446.14 KB PDF 03/31/22 Download
E-series sliders (20170501) 12.68 MB DWG 11/09/21 Download
Screens 330.83 KB ZIP 10/14/21 Download
Aluminum Mullions - booklet 594.25 KB PDF 10/14/21 Download

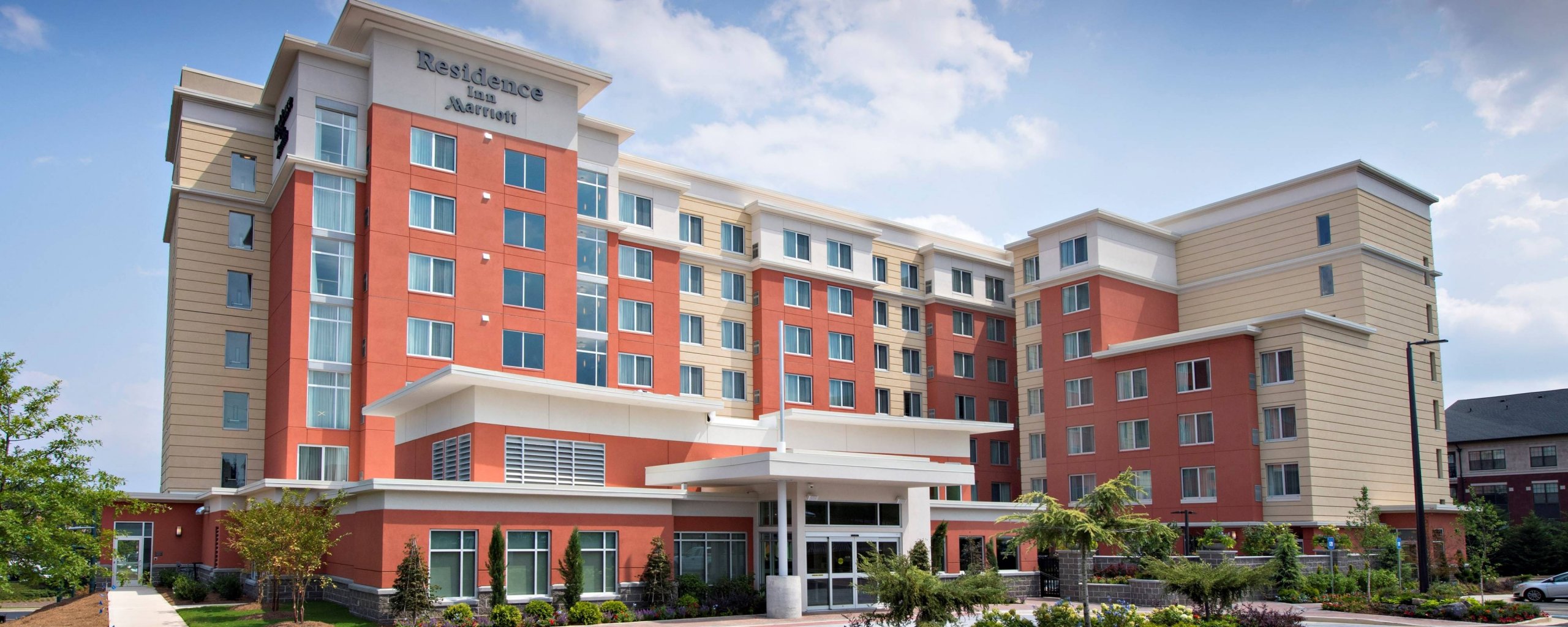

Projects that use
E500 Slider Window
