The Elliott Building



The Elliott Building | Historic Renovation in Detroit, MI

Historic Replication
Kraemer Design Group
Blackberry Systems

DECEMBER 19, 2018

Windows: H503 Single Hung Windows, H503 Picture Windows, H503 Geometric Picture Windows, H601 Casement Windows, H601 Picture Windows, and H601 Push-Out Awning Windows

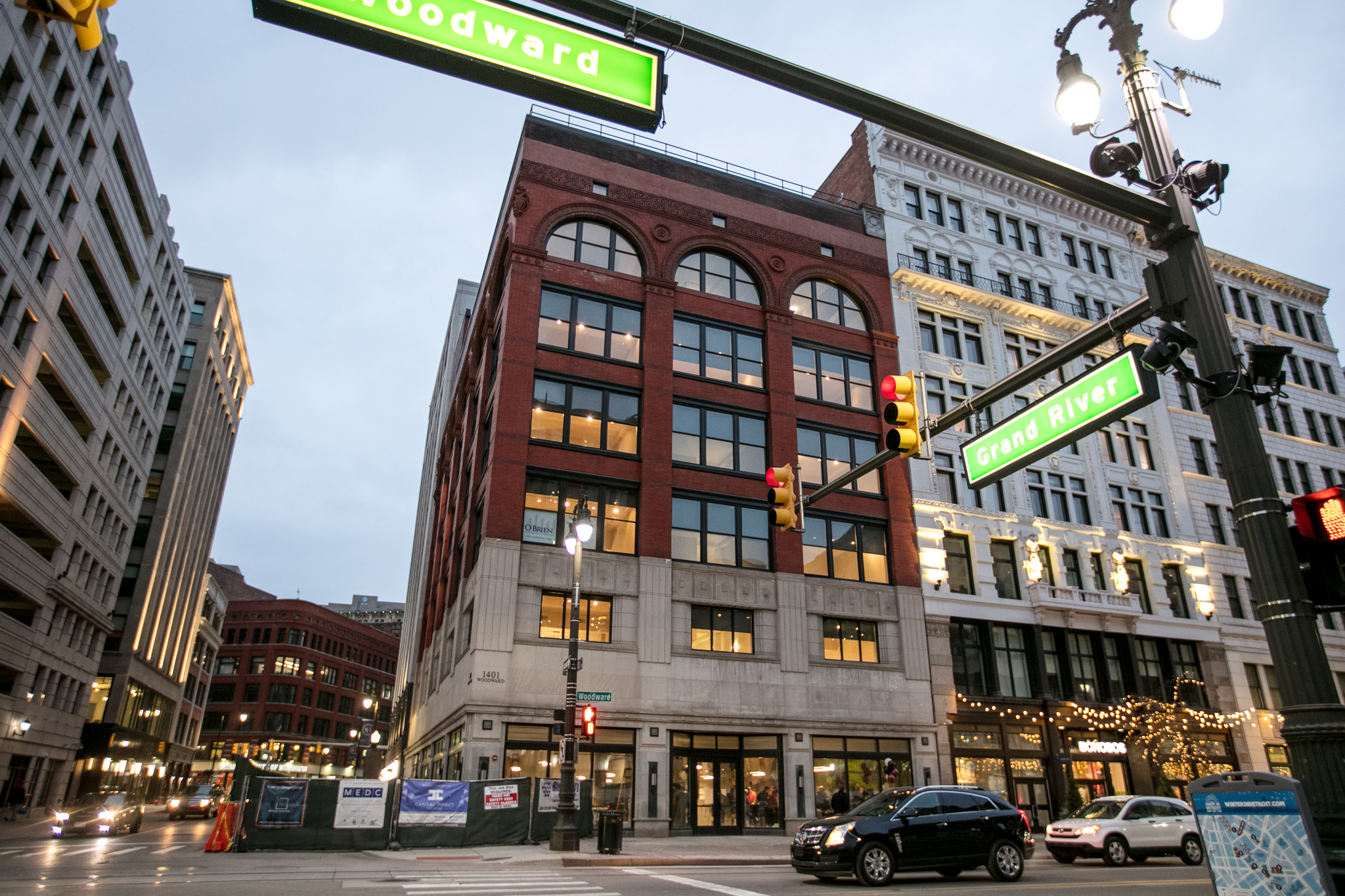

Built in 1894, The Elliott’s distinctive red brick and terra cotta façade and large arched windows made it an anchor on the corner of Grand River and Woodward Avenues. Originally built as the William H. Elliott Dry Goods store, it had a large cornice on the main building facades that eventually came down along with many others in the city. In 1931, the first two floors of the building underwent a transformative renovation when the Kresge Company turned it into a store featuring products ranging from 25 cents to 1 dollar, which is painted on the elevator penthouse also added by the Kresge Company. The sign and other historic features remaining in the building have been preserved, rehabilitated, and in some cases replicated as part of the most recent renovation.

With so many years of different owners, tenants and vacancy, there were various challenges to rehabilitating the most prominent feature: the windows. As in many historic projects, the original windows in The Elliott had undergone too much weather damage in the last 20 years of vacancy, and the wood could not be saved. Kraemer Design Group worked closely with Quaker Windows & Doors throughout the design and construction process to ensure the new aluminum historic-replication windows matched the remaining historic windows exactly, in profile and sightlines. The second-floor windows had been modified from the original double-hung wood versions to thin steel-framed pivot windows as part of the original Kresge renovation in 1931. These windows were more difficult to replicate since they were more unique in their design. The project team came up with a casement/awning window to meet the historic requirements, while still providing operability to the occupants of The Elliott Building for year’s to come.

Photos provided by Kraemer Design Group

Project Pictures
